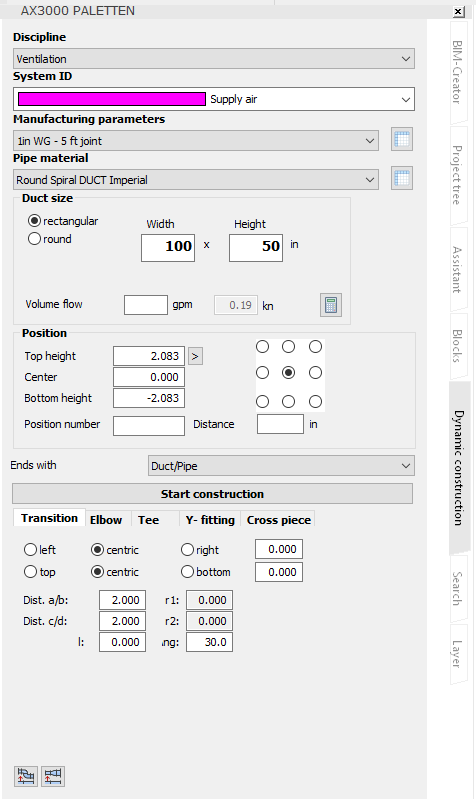

Dynamic construction

Trade

Choose the trade:

System identifier

You can allocate a system-identifier or a color for a new layer.

Per choosing the system-identifier, the name will be adapted.

Following system-identifier are available:

Function to edit the system-identifier list.

This liste is saved in directory %\k_data\lueftung\color.txt.

CAUTION:

         These files should only be edited or set by an authorized and trained CAD-Administrator!

Manufacturing parameters

The manufacturing parameters set  the needable pressure stage for the construction of the system.

By choosing the pressure stage, all sheet metal sizes and connection profiles for the fabrication are allocated to the ducts.

... Button to edit Manufacturing parameters.

Pipe material

Determines the standard material for pipe construction.

... Button to edit pipe tables of all trades.

Cross section

Shows the desired cross section from start point of construction.

When you continue from an existing fitting it's cross section will be overtaken automatically.

Rectangular, round or oval parts are possible.

Position

The position describes the ducts direction along a wall, when the both duct points lye on a line or wall at scanning.

left:

The duct will be placed on the left of the line.

center:

The duct will be placed on the center line.

right:

The duct will be placed on the right of the line.

Distance:

Distance between duct and line.

Ends with

Construction

Starts construction.

Ends construction.

Interrupts the construction.
