Access to the command over: |
AutoCAD/BricsCAD |
|
|---|---|
Command line: _SETLP_RW
Assistant: |
Activate the function,set one or more load points for the calculation.
Load points can be freely moved, copied or deleted after setting with BricsCAD standard functions.

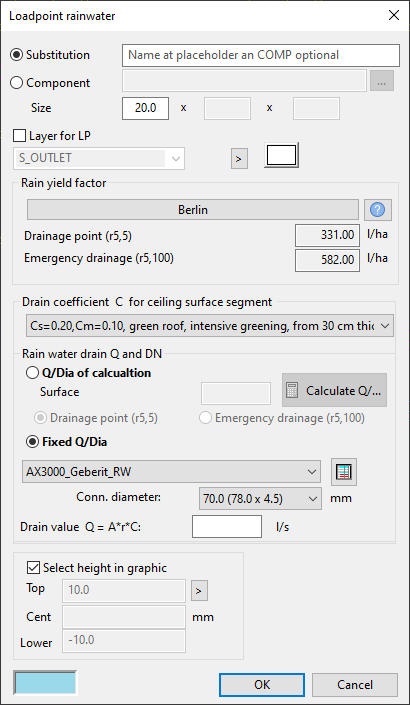

Dialogue-Options
Option |
Description |
|---|---|
Substitution |
With this setting, a fill-in for the pipe-end can be set. After calculation, the rain water pipe ends at this point. |
Component part |
With this function, a component part can be set on the pipe-end. After calculation, the rain water pipe ends at this component part.
Opens the Block Selection. |
Rain yield factor |
|
Drain coefficient |
|
Rain water drain Q and DN |
|
Select height in graphic |
Load point height to be set.
Set Height in Drawing: The height of the point picked.
TOP/M/BOT: The top, middle or bottom edge can be used. |
