Access to the command over: |
AutoCAD/BricsCAD |
|
|---|---|
Command line: _SETLP
Assistant: |
Activate the function, set one or more load points for the calculation.
Load points can be freely moved, copied or deleted after setting with BricsCAD standard functions.

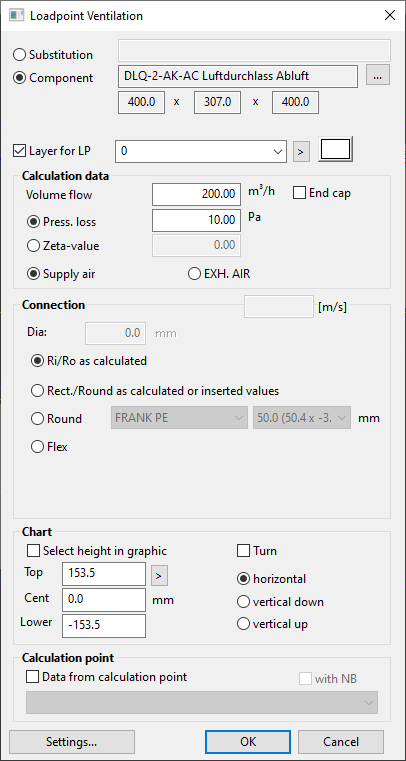

Dialogue-Options
Option |
Description |
Substitution |
By activating the function, the load point is set as symbol into plan. After unit calculation, the ductwork ends at this point.
|
Component |
An article (block) can be used here.
Function to open the Block selection.
The dimensions of the current selected block will be shown. |
New layer for system |
A new layer and its load point color can be selected. |
Calculation data |
The volume flow (m³/h) which is necessary for the calculation of the load points.
Pressure loss or Zeta-value, needed for calculation. |
Connection |
All required values for the load point connection.
DN - Field to fix the connection diameter.
Ri/Ro as calculated - The connection to main line is rectangular or round, with the cross section as shown in calculation.
Round - The connection to main line is a round duct.
Flexible - The connection to main line is a flexible duct.
|
Chart |
The load point heights are entered with this function.
A deactivated checkbox allows the load point height to be entered.
An activated checkbox allows the load point height to be set by picking the height coordinates in graphic. Top, center or bottom edge can be used.
horizontal/vertical: The position of the air register can be determined. |
