The slope of a partial line can be fixed.
Access to the command over: |
AutoCAD/BricsCAD |
|
|---|---|
Command line: _FIXGEFALLE
Assistant: |
After calling up the function, click on one or more partial lines and confirm.

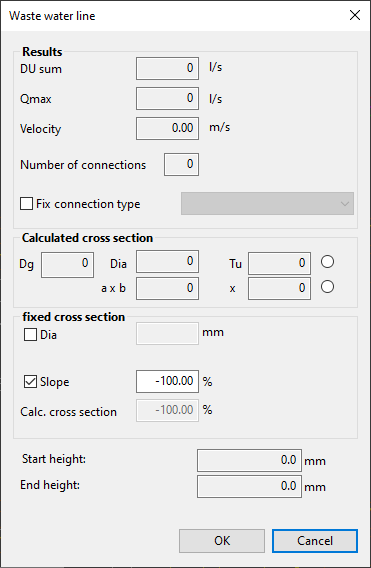

All the information regarding the selected element is shown.
Dialogue-Optionen
Option |
Beschreibung |
|---|---|
FLOW sum
|
Is the total flow of the line picked. |
Qmax |
The maximum flow of the line picked. |
Velocity
|
The velocity of the line picked. |
Quantity of Connections
|
Quantity of load points connected to the line picked. |
Line Type
|
Type of line. |
calculated cross section
|
The calculated cross section is shown here.
|
fixed cross section
|
The cross section or slope can be fixed here. |
starting/end height
|
The start and end height of the waste water line are shown. Always the pipe center is considered. |
