Fitting list parameters can be determined here.
Access to the command over: |
AutoCAD/BricsCAD |
|
|---|---|
Command line: _FLIDEF
Assistant: |

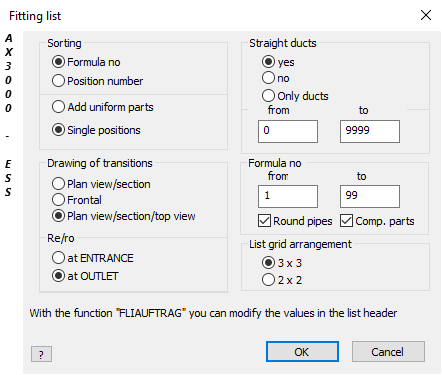

Dialogue-Options
Option |
Description |
|---|---|
Sorting |
Sorts the parts.
Formula Number - The individual numbers are listed in consecutive formula numbers.
Position Number - The individual numbers are listed in consecutive position numbers.
Similar Parts summary - Identical parts are summary.
Individual Positions - Every part is shown in the list. |
Drawing Transitions
|
Transitions can be drawn as rectangular to rectangular. |
Ri/Ro
|
Sorts out the transitions rectangular&round. Rectangular cross sections are shown at entrance or exit. |
Straight Ducts
|
Serves to issue rectangular ducts.
yes - Fittings and straight ducts are issued.
no - Only fittings are issued.
only ducts - Only ducts are issued.
from/to - Limits the duct length to be issued. |
Formula Number
|
Fittings to be issued can be defined with Formula numbers.
Round ducts - Acitvates&Deactivates round ducts for issuance. |
Setting Fittings List Grid
|
3x3 - Shows 9 parts to a list (3 horizontal, 3 vertical).
2x2 - Shows 4 parts to a list (2 horizontal, 2 vertical). |
