Select linegroups to be fixed.
The dimension or velocity of a partial line can be individually set.
This setting is valid for the entire linegroup.
Access to the command over: |
AutoCAD/BricsCAD |
|
|---|---|
Command line: _FIXSTRANG
Assistant: Assistant: |

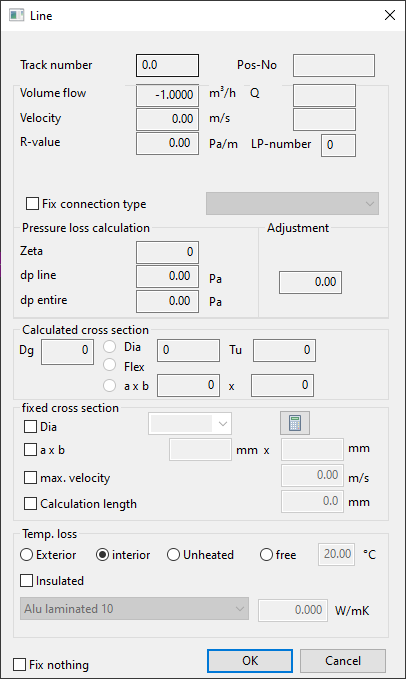

A Dialogue opens:
Dialogue-Options
Option |
Description |
|---|---|
Pressure loss calculation |
Insert Zeta- and dp-values |
Calculated cross section |
Calculated cross sections from th program. |
fixed cross section |
The cross section can be fixed here.
DIA - Sets a round cross section.
a x b - Sets a rectangular cross section.
Velocity - Sets the velocity. |
Temperature loss |
