With this function, round wye-pieces can be drawn.

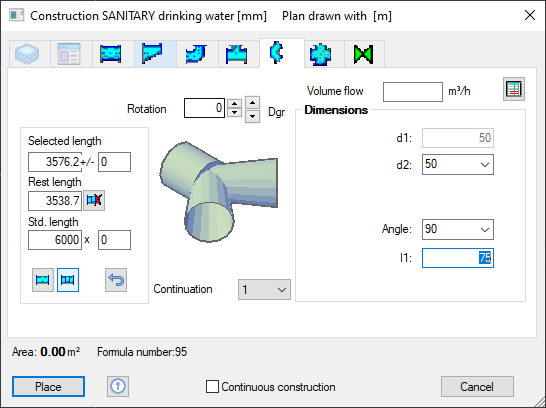

Dialogue-Options
Option |
Descriptions |
|
|---|---|---|
Alignment |
Rotation: Shows the new direction of construction in degrees. The direction can be manually rotated for rectangular ducts with these buttons in four main directions (up, down, left, right). |
|
Duct Tables |
|
Button to edit the Duct Tables for all trades. |
Dimensions |
|
d1: Diameter at the beginnig of the wye-part.
d2: Diameter a the one end of the wye-part.
Angle: Angle at branch.
l1: Length of the branches.
|
Continuation |
Here you choose the branch duct, where you want to connect. |
|
Selected length Rest length Std. length |
||
Functional fields |
(Place, Continuous construction, Cancel) |
|
