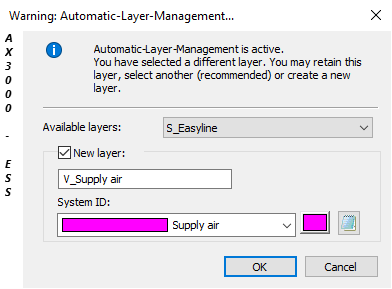

When the function Trade Definition is activated and you start with duct-construction,you can define here a system-layer.
This message only appears when a manual made layer is active (e.g. Layer 0).
Dialogue-Options
Option |
Description |
|
|---|---|---|
Available Layers |
These Layers are already created layers (e.g. L_Main Exhaust). If the selected layer does not have the required additional layers of the Trade Definition, they will be created automatically. |
|
New Layer
|
At deactivated Checkbox the ducts will be placed onto the active layer.
At activated Checkbox a own layer for the calculated ductwork can be created.
Also the layer color can be selected. All settings from Trade Definitions are valid. At deactivated Checkbox the ducts will be placed onto the active layer. |
|
SystemID
|
Either a system ID or a color can be assigned to the new layer. By selecting the system ID the description will be adapted. Following system ID's are available:
With this function you are able to edit the system ID list. These predefined layers are saved as attribute files in the directory %\k_data\lueftung\color.txt.
These files should only be edited or set by an authorized and trained CAD-Administrator! |
