Layer change

Change and use layer settings

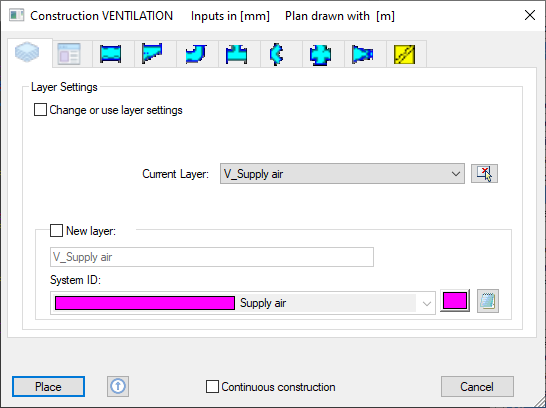

Here you are able to change the system layer onto an existing or onto a new layer.

New Layer

At deactivated Checkbox the ducts will be placed onto the active layer.

At activated Checkbox a own layer for the calculated ductwork can be created.

Also the layer color can be selected.

All settings from Trade Definitions are valid.

At deactivated Checkbox the ducts will be placed onto the active layer.

SystemID

Either a system ID or a color can be assigned to the new layer.

By selecting the system ID the description will be adapted.

Following system ID's are available:

With this function you are able to edit the system ID list.

These predefined layers are saved as attribute files in the directory %\k_data\lueftung\color.txt.

CAUTION:

         These files should only be edited or set by an authorized and trained CAD-Administrator!
