Place floor symbol



With this function you are able to place a duct jump symbol after the construction.



                                Access to the command over:



AutoCAD/BricsCAD





Command line: _BESETAGE



Assistant: lueftung_gew | Ventilation Service | posil2| Place floor symbol









This function is only useable for parts with formula number 60 (Floor) corresponding to floor geometry

(constant cross section, vertical and horizontal projection).

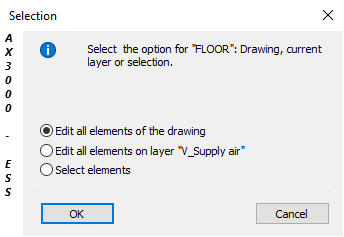

The function can now be selected.



Etagenzeichen_setzen

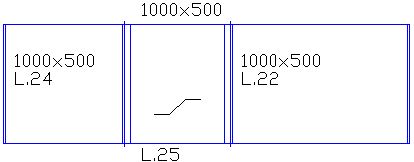

Example:

Etagenzeichen
