Function to draw straight ducts.

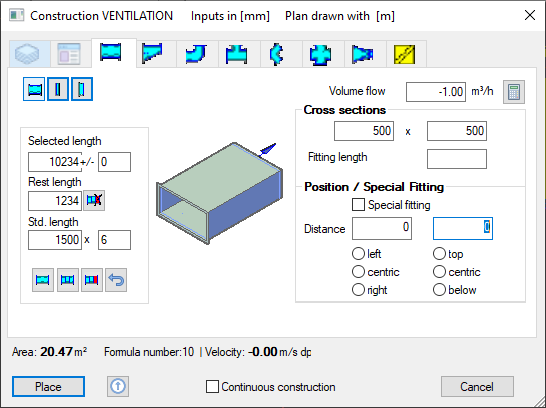

Dialogue-Options
Option |
Description |
|
|---|---|---|
Duct |
|
By activating this function, the last part becomes a duct. |
End cap |
|
By activating this function, the last part becomes an end cap. |
End cap with flange |
|
By activating this function, the last part becomes an end cap with flange. |
Volume flow |
|
This function activates the Volume Flow Calculation for ductwork cross-sections. |
Cross Section |
|
The cross section can be manually entered or taken from the Volume Flow Calculation. |
Position / Special Fitting
|
|
This function is used to construct special fittings (several fittings in same framework) in a ductwork.
Special fitting: Activates the function special fitting.
Distance: The both distance inputs are responsible for the horizontal and the vertical distance from positioning fields.
Position: left flush with left edge centric center along horizontal right flush with right edge
top flush with top edge centric center along vertical below flush with bottom edge |
Selected length Rest length Std. length |
||
Functional fields |
(Place, Continuous construction, Cancel) |
