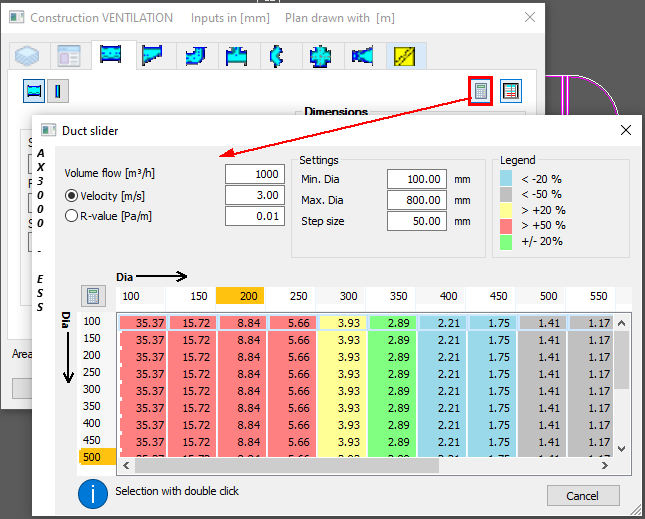

AX3000 is able to calculate a duct cross sections.
This can be made in several versions with corresponding values.
According to fitting, the cross section 'a' can only be active. (e.g. elbow with variable cross section).
Dialogue-Options
Option |
Description |
|
|---|---|---|
Volume flow |
The duct volume flow is calculated in m³/h. |
|
Velocity |
|
The duct volume flow velocity is calculated in m/s. |
R-value |
|
The R-Value of calculated duct. |
Minimal a/b |
|
Minimal duct Height/width in mm. |
Maximal a/b |
Maximal duct Height/width in mm. |
|
After editing the values you have to use the
|
Button for new calculation!!!
