Constructed branches can be connected with a ductwork.
Access to the command over: |
AutoCAD/BricsCAD |
|
|---|---|
Command line: _EASY_POS_CALC
Assistant: |
Click on a part in drawing, after executing this function.
Select the function 'attach positions'.
Click on the branch in drawing and the connected parts.
Confirm with 'OK'.

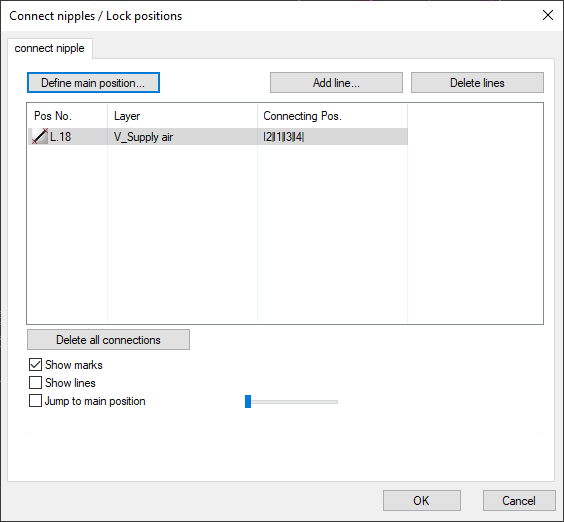

Dialogue-Options
Option |
Description |
|---|---|
Define main position |
With this function, the parts that are marked on the screen, will be taken to the list. |
Add lines |
Marked parts in drawing will be added to the list.
|
Delete lines |
Marked parts as branches in drawing will be deleted from the active position. |
Delete all connections |
All positions will be removed from the list and the branch connection to the defined positions as branches in drawing will be deleted. |

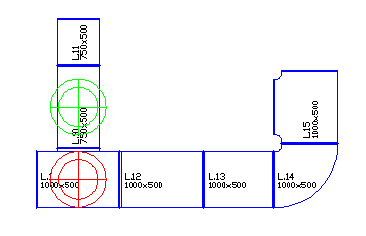

The marked parts from the list are shown in the graphic:
