With this function, a regulating valve can be placed in a linegroup.
Access to the command over: |
AutoCAD/BricsCAD |
|
|---|---|
Command line: _EASYINSERT_KP
Assistant: |

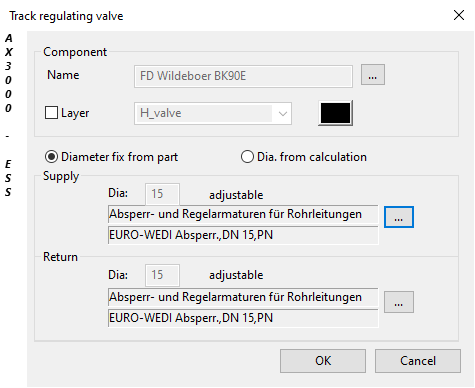

Dialogue-Options
Option |
Description |
|---|---|
Component |
Selects the component part from the article library.
Opens Block Selection. Here you can choose a block for display.
Layer - With this function, the regulating valve can be set in its own layer. |
DN fix from part |
The Dimension is taken from the part (Manufacturer valve VDI3805-link) |
Supply/Return |
Selects the valves.
Valves and Radiator Parameters can be selected from the VDI3805-link and given to the regulating valve.
|
