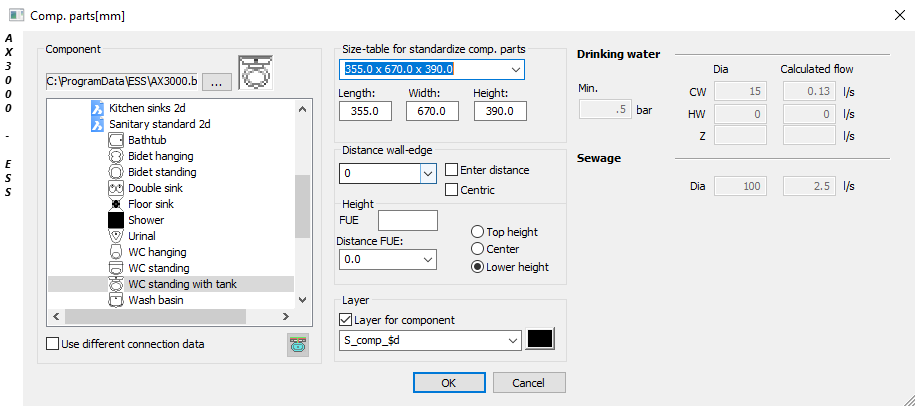

Place sanitary objects

                                Access to the command over:

Command line: _SETEBT3PS

Assistant: | Sanitary |

Assistant: | Sanitary |

Component part

Select the block which should be placed here.

An active block is shown in blue.

The blocks are saved in folder %\k_data\lueftung\ BLOCKS.

Attention:

Only certificated CAD administrators are allowed to create or edit these files.

With the button above you are able to open another register where you can find other blocks.

Norm-Component Part Sizes Table

The block measurements can be taken from the attribute tables or manually entered.

This meassurments and additionals infomations are saved in folder %\k_data\sanitär\BLOCKS.

Attention:

Only certificated CAD administrators are allowed to create or edit these files.

A building measurement can be selected from the size-table.

Distance Wall Edge

The distance from the object to the next wall edge (end point) can be determined here.

Enter Distance:

The object can be placed in the plan with this function.

The position (wall side) and the distance from setting point can be set.

Centric:

The object is set centric between the both picked points.

Height

The object height in relation to building is entered here.

FF (Finished Floor Height):

This height is the finished floor height in relation to building.

Distance FF:

The distance from object to finished floor height.

This distance can be either from the upper, center or bottom edge of object.

Layer

A Sanitary Object Layer can be selected or entered here.

Other Attribute Files

This function activates the Sanitary objects definition ().

An other attribute file can be defined for the object.
