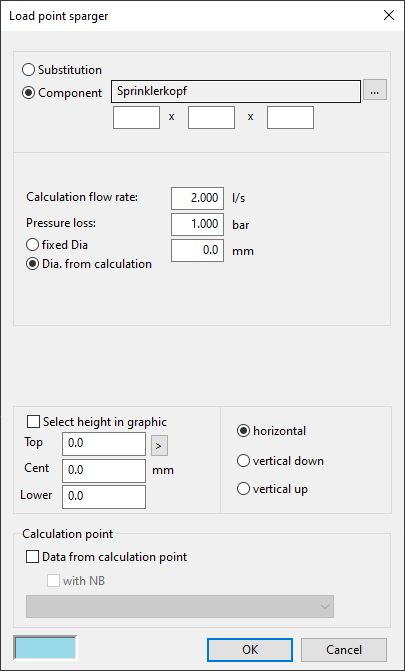

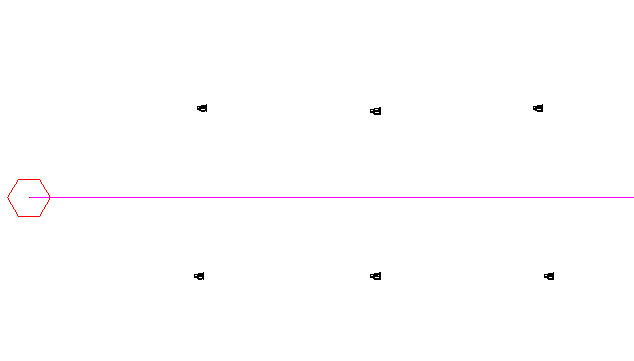

Place Sparger head/loadpoint

                                Access to the command over:

Command line: _SETLP_SPR

Assistant: | Sparger Easyline |

Option

Description

Substitution

By activating this function the load-point will be set symbolic.

After calculating the system, the duct/pipe ends at this point.

Component part

With this function, a component part can be set on the pipe-end.

After calculation, the rain water pipe ends at this component part.

Opens the Block Selection.

Calculation

Calculation flow rate:

Der für die Berechnung des Lastpunktes zu berücksichtigende Druckverlust.

Pressure loss:

fixed dia:

Select height in graphic

The load point heights are entered with this function.

A deactivated checkbox allows the load point height to be entered.

An activated checkbox allows the load point height to be set by picking the height coordinates in graphic. Top, center or bottom edge can be used.

horizontal/vertical:

The position of the air register can be determined.
