With this function, rectangular component parts can be set.

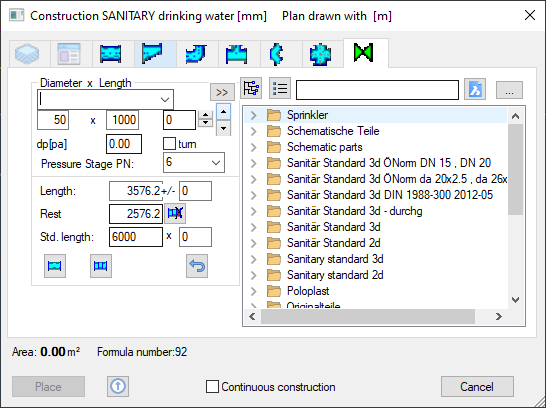

Dialogue-Options
Option |
Descriptions |
|
|---|---|---|
Block Selection |
Diameter x Length: Use either block dimensions from the attribute tables or select manually. The previous duct cross section will be shown as standard.
The component part can be rotated along the long axis in the four main directions.
turn: This function mirrors a block (e.g. to turn a ventilator in air flow direction).
The type of the attribute file can be selected here.
There are 3 types: Single Blocks: Attribute files for only one block. Block Group Files: Attribute files for all blocks in the block file. Standard Attribute Files: Attribute files for all block files.
These dimensions and additional informations are saved in the attribute file %\k_data\sanitaer\BLOCKS.
These files should only be set or edited from trained CAD-Administrators! |
|
Display |
|
Tree-View, all blocks
Displays the favourite blocks. Blocks can be defined as "Favourite blocks" with right mousebutton.
Search through free text-insert. The search starts after 2 second, or confirming with tabulator.
Changes between block - and dwg-search.
Search block directory. All blocks are saved in directory %\k_data\sanitaer\ BLOCKS.
These files should only be set or edited from trained CAD-Administrators! |
Selected length Rest length Std. length |
||
Functional fields |
(Place, Continuous construction, Cancel) |
