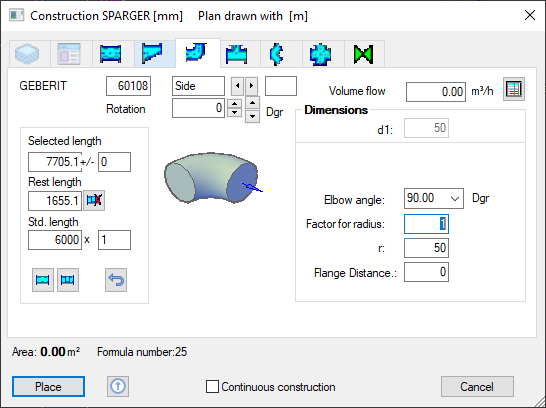

This function is used to draw round elbows.
Dialogue-Options
Option |
Description |
|
|---|---|---|
Alignment |
Side/Center: Side ... Bow ends with back edge at 2nd system-point. Center... Bow ends centric at 2nd system-point.
Rotation: Shows the new direction of construction in degrees. The direction can be manually rotated for rectangular ducts with these buttons in four main directions (up, down, left, right). |
|
Duct Tables |
|
Button to edit the Duct Tables for all trades. |
Dimensions |
|
Serve the entry of each cross section.
d1: The start cross section of the fitting as entered in Starting Values will be shown.
Elbow Angle: Angle of Elbow.
Radius Factor: Radius factor at center line of elbow. |
Selected length Rest length Std. length |
||
Functional fields |
(Place, Continuous construction, Cancel) |
