Access to the command over: |
AutoCAD/BricsCAD |
|
|---|---|
Command line: _HK_AUSWAHL
Assistant: |
Radiators can be manually placed with this function.
Radiator effeciency can either be selected by clicking on a calculated room or a manually placed room.
Radiator efficiency can also be manually determined.
When the first point selected in plan in a room book, the function search radiators in rooms is opened.
After confirming the radiator selection, 2 points have to be picked in plan
Between these 2 points the radiator will be placed.
As the last step select on which side the radiator should be placed.
When manually placing a radiator by entering the efficiency, the first point has to be the first laying
point also.

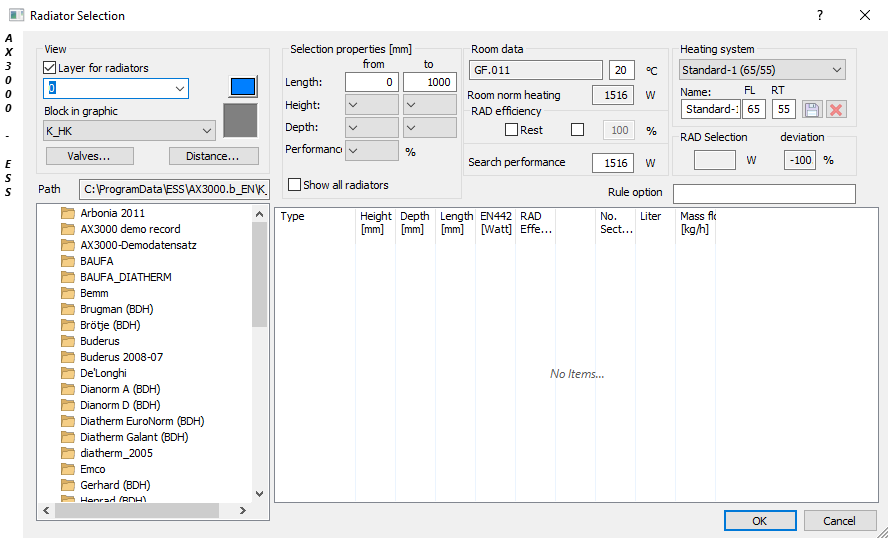

Dialogue-Options
Option |
Description |
|
|---|---|---|
Manufacturer-Overview
|
All manufacturer-assigned radiators from the VDI3805-file are shown.
This connections are saved in the file %\k_data\heizung\HK . Attention: Only certificated CAD administrators are allowed to create or edit these files. |
|
Selection properties
|
The quantity of radiators shown can be limited. Only the radiators with the same selected parameter will be shown. |
|
Room Data
|
All data such as, room number or heat efficiency will be used. |
|
RAD-efficiency |
Radiator efficiency can be modified in relation to the room. Rest: Radiators are placed according to the rest-efficiency of the room (when radiators already exist in the room) %: Efficiency will be assigned in percent. Radiator efficiency is calculated from the room efficiency. |
|
Heating System |
These temperatures are used to recalculate the Norm-heating efficiency. A new heating system can be set with the function Easyline-Starting point Heating. |
|
Valves... |
The function Valve and Radiator Parameters will be opened.
|
|
Distance...
|
Radiator distances are entered with this function. |
|
RAD-Efficiency Requirements |
Radiator efficiency can be entered with this function. The ideal radiator will be shown. RAD-Selection/Variation: Selected radiator and its variation to the requirements is shown for controlling. |
|
Type Selection
|
Radiator can be selected here. EN442 [Watt] ... radiator Norm-heating efficiency RAD Efficiency ... radiator efficiency with system temperature |
