Reference Commands > S > Set

Easyline Starting-point Heating

The start points for the Easyline System Heating can be set here.

These start points contain all the necessary values for calculating a pipework system.

Two start Points (supply and return) must be set on the corresponding Easyline Systems.

Access to the command over:

AutoCAD/BricsCAD

Command line: _SETAP_H

Assistant: | Heating Easyline |

A Dialogue opens:

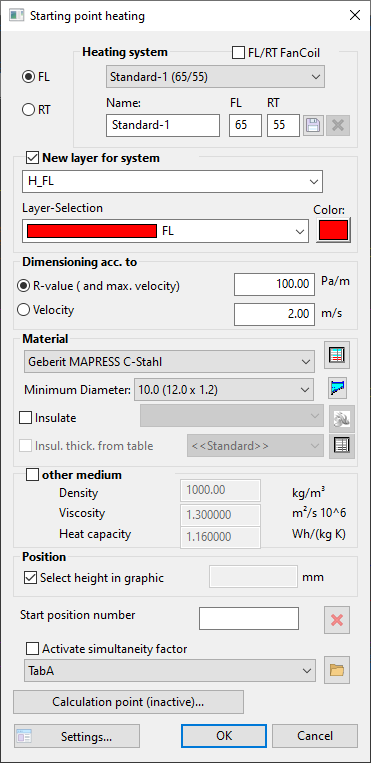

VD_Anfangspunkt_Heizung

Dialogue-Options

Option	Description
FL/RT	Here distinguishes between the supply and return starting points.
Heating System	The supply and return temperatures for the heating system can be set here. With the names SUP and RET, a new heating system can be generated. This heating system is saved with the function ().
New System Layer	A deactivated Checkbox: pipework is set in the active layer. An activated Checkbox: an new layer can be set for the pipework to be calculated. The layer can be selected an modified from the layer-selection with its description. The color can also be modified. The settings Trade definitions are valid.
Dimensioning	Shows with which criteria the pipework is going to be set. Dimensioning with R (pressure loss) or dimensioning with velocity are available.
R-value	The maximum useable (pipework -dimensioning) pressure loss per pipe-meter in Pa/m.
max. velocity	The maximum useable (pipework-dimensioning) velocity in m/s.
Material	The material and the minimum diameter of the generated pipework can be selected. All heating materials stored in the pipe tables can be used.
other Medium	For the placement of a pipework, an alternative medium for density and viscosity can be used. e.g. Cool pipes with "glycol mixture" or systems with "oil"
Position	By activating 'pick height in drawing', the Easyline-Starting point is set on picked point. When deactivating this function, a new height can be entered.
