Wye-piece round



Hosenstück



Function to draw wye fittings.



ru_hosenstueck

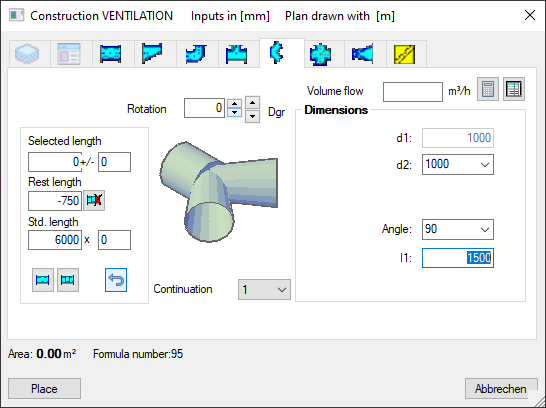

Dialogue-Options



Option



Description

Alignment

Rotation:

Shows the construction direction in degrees.

The direction can be manually rotated for rectangular ducts with these buttons Button_up_gross Button_down_gross in four main directions (up, down, left, right).

Volume flow

clip0033

This function activates the Volume Flow Calculation ductwork cross sections.

Edit

rtab_icon

Button to edit Duct Tables for all trades.

Dimensions



d1:

Diameter at the beginnig of the wye-part.



d2:

Diameter a the one end of the wye-part.



Angle:

between the two brackets.



l1:

Length of the brackets.

Continuation

Here you choose the branch duct, where you want to connect.

Selected length

Rest length

Std. length

See chapter "Length"

Functional fields

(Place, Continuous construction, Cancel)

See chapter "Functional fields"
