Heating load point



The heating load point can be set with this function.



                                Access to the command over:



AutoCAD/BricsCAD





Command line: _SETLP_H



Assistant: heizung_gew | Radiator | H_VD_LP

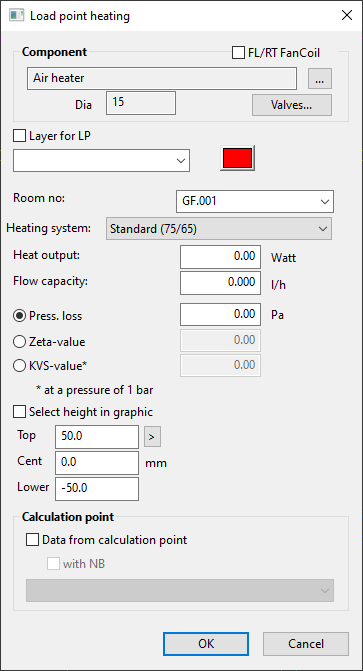

A Dialogue opens:

setlp_h



Dialogue-Options



Option

Description

Component part



Selects the component part from the article library.



blockauswahl

Opens Block selection.

Here can a block for drawing be selected.





valves_01

Valves and radiator parameters can be given to component part.





Room Number

A room can be selected here.

Heating System

A heating system for the heat calculation can be selected.

Heating Effeciency/ Through-Flow

Load point effeciency is set. This can be set in Watt-Norm-heating or in Liter/h.

Zeta/Pressure Loss

The pressure loss can be entered.

Position

By activating 'pick height in drawing', the Easyline-Start point is set on picked point. When deactivating this function, a new height can be entered.
