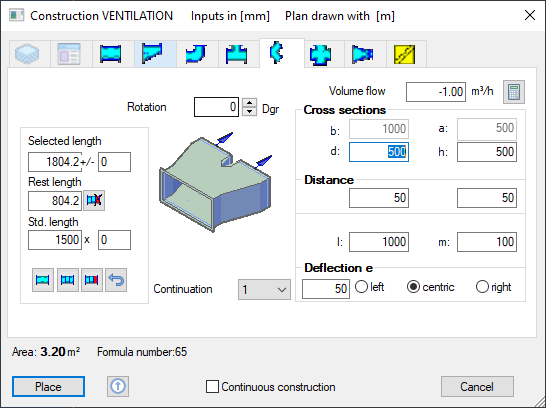

Wye-piece

Rotation

Shows the construction direction in degrees.

The direction can be manually rotated for rectangular ducts with these buttons in four main directions (up, down, left, right).

Volume flow

This function activates the Volume Flow Calculation ductwork cross sections.

Cross sections

a:

The start cross section (a/b) of the fitting entered in the Starting Values will be shown.

d/h:

The end cross sections for the constructing fitting will be entered here.

The cross section 'd' corresponds the passage, the cross section h the branch.

The cross sections can also be determined over the Volume Flow Calculation and can be overtaken.

Distance

Abstand zur Flanschmontage

1st field = IN, 2nd field = OUT

L:

Special fitting length

m:

Distance between the branches.

Deflection e

According to DIN Norm, the given vertical transition projection (right edge to right = +e).

This projection can be centrical, top straight, bottom straight or manually selected.

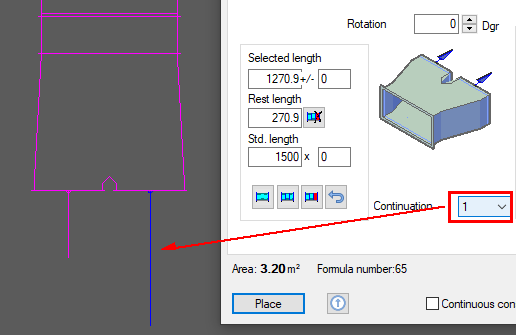

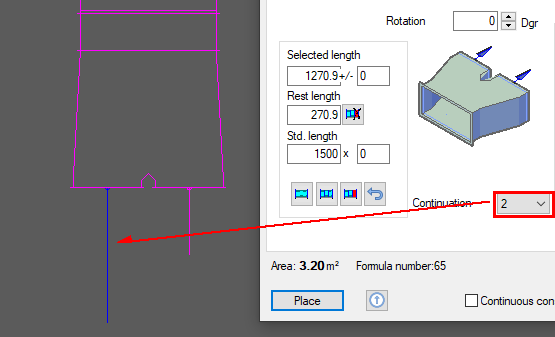

Continuation

Here you choose the branch duct, where you want to connect.

Selected length

Rest length

Std. length

See chapter "Length"

Functional fields

(Place, Continuous construction, Cancel)

See chapter "Functional fields"
