With this function you are able to draw symmetrical or asymmetrical Tees.
Tees can be drawn as a through-fitting or transverse tee fitting.

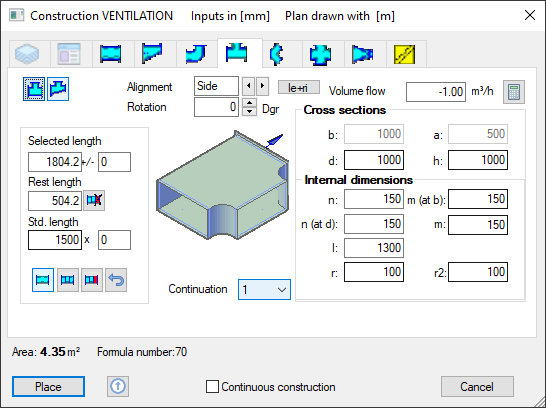

Dialogue-Options
Option |
Description |
|
|---|---|---|
Straight Tee |
|

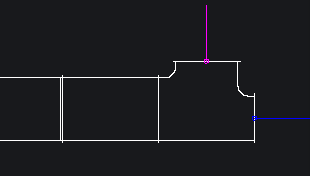

Draws a symmetrical tee.
|
Mitered Tee |
|

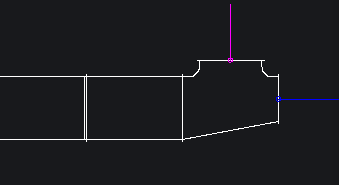

Draws an asymmetrical tee.
|
Alignment |
Side/Center: Side ... Bow ends with back edge at 2nd system-point. Center... Bow ends centric at 2nd system-point.
Rotation: Shows the construction direction in degrees. The direction can be manually rotated for rectangular ducts with these buttons
With this function you can change between a through-fitting tee and a cross fitting tee. |
|
Volume flow |
|
This function activates the Volume Flow Calculation ductwork cross sections. |
Cross sections |
|
a: The start cross section (a/b) of the fitting entered in the Starting Values will be shown.
d/h: The end cross sections for the constructing fitting will be entered here. The cross section 'd' corresponds the passage, the cross section h the branch. The cross sections can also be determined over the Volume Flow Calculation and can be overtaken. |
Internal dimensions |
|
Here you can correct the internal dimensions and the radii of the tee. As standard the program values will be used to get a symetrical or asymetrical tee according to selection. |
Selected length Rest length Std. length |
||
Functional fields |
(Place, Continuous construction, Cancel) |
