Use this function to draw symmetrical and asymmetrical elbows,
as well as symmetrical, asymmetrical and angled knees.

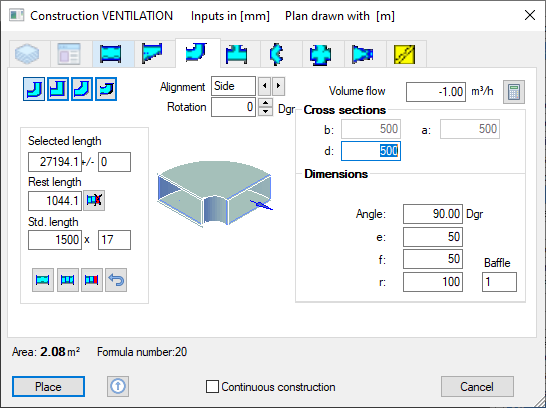

Dialogue-Options
Option |
Description |
|
|---|---|---|

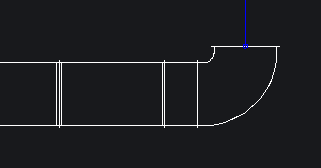

Elbow |
|
Function to draw symmetrical and asymmetrical elbow.
|

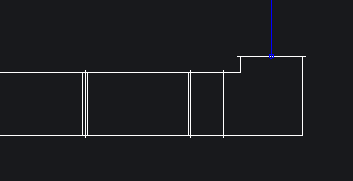

Knee piece |
|
Function to draw symmetrical and asymmetrical knees.
|

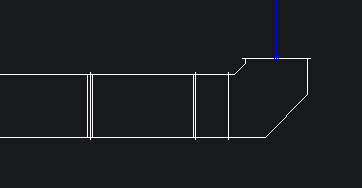

Mitered elbow |
|
Function to draw angled knees.
|

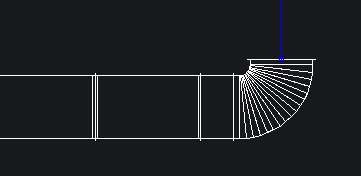

Parker-Bow |
|
Function to draw Parker-Bows.
|
Alignment |
Side/Center: Side ... Bow ends with back edge at 2nd system-point. Center... Bow ends centric at 2nd system-point.
Rotation: Shows the new direction of construction in degrees. The direction can be manually rotated for rectangular ducts with these buttons in four main directions (up, down, left, right). |
|
Volume flow |
|
This function activates the Volume Flow Calculation ductwork cross sections. |
Cross sections |
|
The start cross section (a/b) of the fitting as entered in Starting Values is shown. This cross section can also be taken from the Volume Flow Calculation. |
Dimensions |
|
Angle: The angle for the special fitting.
e: The straight dimension of the inner edge at beginning of fitting for connection profile.
f: The straight dimension of the inner edge at end of fitting for connection profile.
r: The inner radius of elbow or knee. |
Selected length Rest length Std. length |
||
Functional fields |
(Place, Continuous construction, Cancel) |
