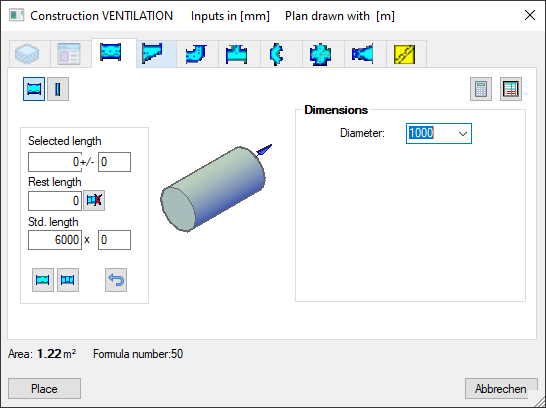

With this function you are able to draw round ducts.
Dialogue-Options
Option |
Description |
|
|---|---|---|
Duct |
|
By activating this function, the last part becomes a duct. |
End cap |
|
By activating this function, the last part becomes an end cap. |
Volume flow |
|
This function activates the Volume Flow Calculation for ductwork cross-sections. |
Edit |
|
Button to edit Duct Tables for all trades. |
Dimensions |
|
The desired duct diameter can be manually entered, taken from the Duct Tables or the Volume Flow Calculation. |
Selected length Rest length Std. length |
||
Functional fields |
(Place, Continuous construction, Cancel) |
