Reference Commands > S > Show

 Zurück  Weiter

Show R-value on/off



                                Access to the command over:



AutoCAD/BricsCAD





Command line: _regenall

                            _SHOWDUCTR



Assistant: lueftung_gew | Ventilation analysis | SHOWDUCTR







With this function you get the possibility to show the r-values through the system graphically.

First you have to calculate the system with Easyline.



Luedarst



The same button is used to turn the function on or off.

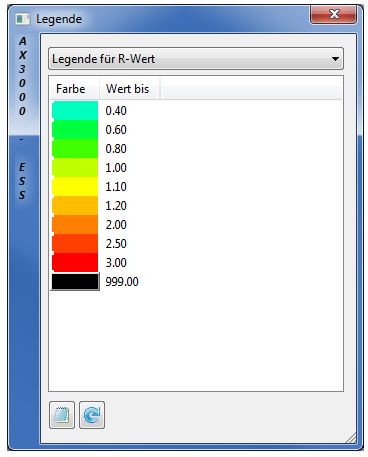

If it is activated you will see a Dialogue with different colors, according to the r-value.



Showr



Also the EasyLine-ducts are colored in the caculated r-value.

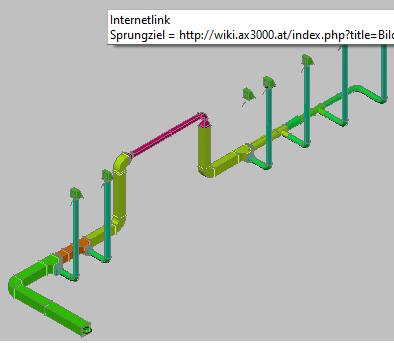

Example:



Showr1
