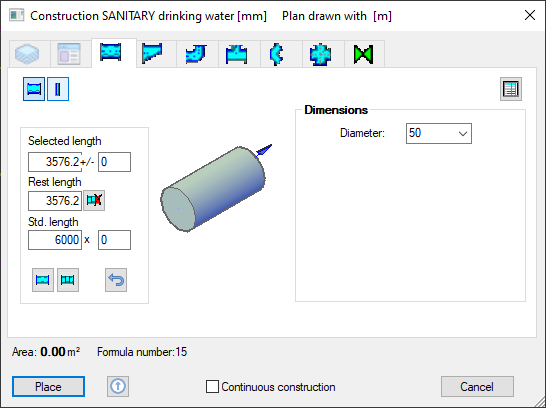

Pipes can be drawn with this function.
Dialogue-Options
Option |
Descriptions |
|
|---|---|---|
Pipe |
|
By activating this function, the last part becomes a pipe. |
Endcap |
|
By activating this function, the last part becomes an end cap. |
Duct Tables |
|
Button to edit the Duct Tables for all trades. |
Dimensions |
|
The desired duct diameter can be manually entered, taken from the Duct Tables. |
Selected length Rest length Std. length |
||
Functional fields |
(Place, Continuous construction, Cancel) |
