This function is used to draw transitions.

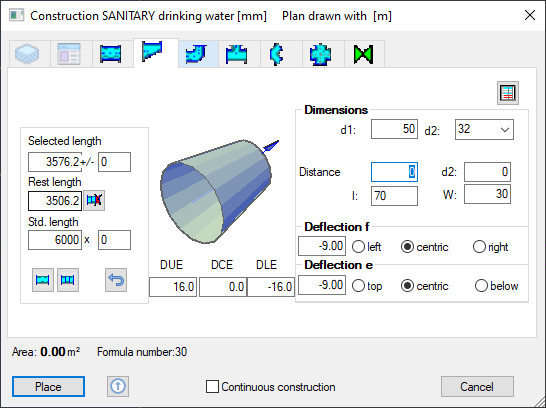

Dialogue-Options
Option |
Descriptions |
|
|---|---|---|
Duct Tables |
|
Button to edit the Duct Tables for all trades. |
Dimensions |
|
Serve the entry of each cross section of transition.
d1: The start cross section of the fitting as entered in Starting Values will be shown.
d2: This cross section can either be manually intered, taken from the Duct Tables.
Distance d1/d2: Distance at beginning and end of transition.
l/W: Angle and length of transition. The special fitting length is taken from the cross sections and finishing parameters with an angle of 30°, and can be modified. |
Deflection f |
|
According to DIN Norm, the given horizontal transition projection (right edge to right = +f). This projection can be centrical, left straight, right straight or custom selected. |
Deflection e |
|
According to DIN Norm, the given vertical transition projection (top edge = +e). This projection can be centrical, top straight, bottom straight or manually selected. |
Selected length Rest length Std. length |
||
Functional fields |
(Place, Continuous construction, Cancel) |
