A free cold/hot/waste water load point can be defined in the system.
Access to the command over: |
AutoCAD/BricsCAD |
|
|---|---|
Command line: _SETLP_S
Assistant: |
Activate the function, set one or more load points for the calculation.
Load points can be freely moved, copied or deleted after setting with BricsCAD standard functions.

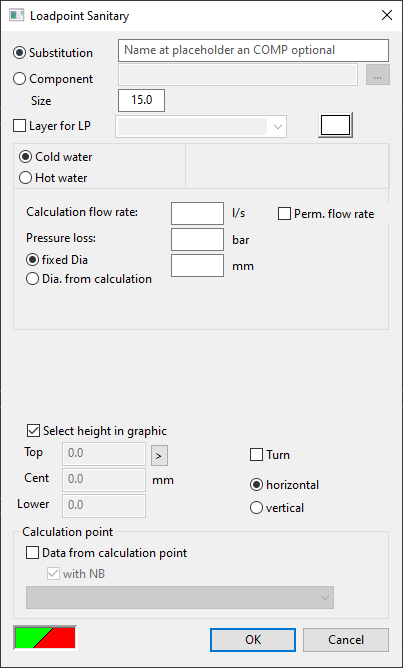

Dialogue-Options
Option |
Description |
|---|---|
Sustitution |
|
Component part |
Selects the component part from the article library.
Opens Block selection. Here can a block for drawing be selected. |
Cold Water/Hot Water
|
Defines the type of load point.
|
Calculation flow rate
|
Unrestricted flow for calculation. This flow is minimized by the building type (simultaneousness). |
Pressure loss
|
Load point pressure loss in Pa. |
fixed DIA
|
Fixed connection load point diameter. |
