Easyline Circulation



A line group drawn with the standard functions (line, polyline, elbow, etc.) can be calculated and set to an Easyline-System for pipework construction.



For dimensioning pipelines, the values in the Circulation load point and Easyline Starting-point Circulation are used.





                                Access to the command over:



AutoCAD/BricsCAD

Allplan



Command line: _EASYLINE



Assistant: saniicon | Circulation Easyline | L_easyline_Z



Toolbar: Sanitary facilities | Circulation |sani_allplan_10







After calling up the function following Dialogue opens:

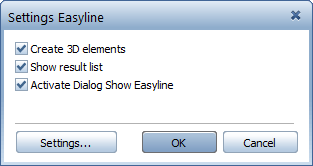

easyline_Neu





Dialogue-Options



Option



Description

Create 3D elements

A pipework is generated by calling up the function and choosing all lines, that need to be calculated, in a selection-window.



Additional there is the possibility to pick only the starting-points to calculate the whole system.

Tipsandtricks If you choose only starting-points, it is necessary that all load-points are displayed at the screen (Block-layer and Element-layer).

Show results list

The circulation system will be calculated and issued in Excel.

Actvate Dialogue Show Easyline

Function to check and change Easyline-systems.

Settings

Here you can make settings for Easyline.
